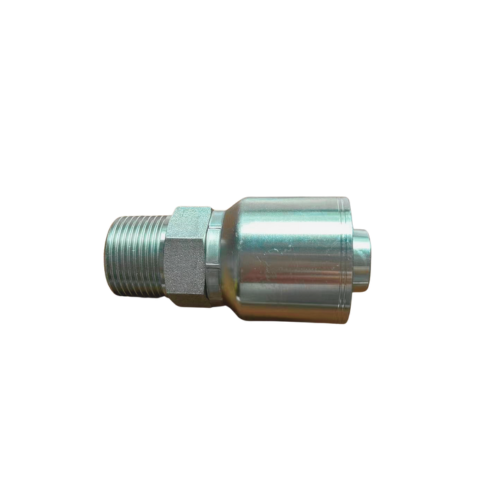

Male NPTF Pipe Hose Fitting
Interchangeable with Parker 43 Series, Eaton AA series
- Available hydrualic hose
1SN(100R1 AT),2SN(100R2 AT),100R3,100R4,100R16,100R17,
1 wire & 2 wire braided hydrauic hose,2 layer textile braided hose
- Material: Carbon steel, Stainless steel available
- Datasheet
| NL Part# | Parker # | Thread inch |
Hose I.D. inch |
| 43101-2-4 | 10143-2-4 | 1/8×27 | 1/4 |
| 43101-4-4 | 10143-4-4 | 1/4×18 | 1/4 |
| 43101-4-5 | 10143-4-5 | 1/4×18 | 5/16 |
| 43101-4-6 | 10143-4-6 | 1/4×18 | 3/8 |
| 43101-6-4 | 10143-6-4 | 3/8×18 | 1/4 |
| 43101-6-5 | 10143-6-5 | 3/8×18 | 5/16 |
| 43101-6-6 | 10143-6-6 | 3/8×18 | 3/8 |
| 43101-6-8 | 10143-6-8 | 3/8×18 | 1/2 |
| 43101-6-10 | 10143-6-10 | 3/8×18 | 5/8 |
| 43101-8-4 | 10143-8-4 | 1/2×14 | 1/4 |
| 43101-8-6 | 10143-8-6 | 1/2×14 | 3/8 |
| 43101-8-8 | 10143-8-8 | 1/2×14 | 1/2 |
| 43101-8-10 | 10143-8-10 | 1/2×14 | 5/8 |
| 43101-8-12 | 10143-8-12 | 1/2×14 | 3/4 |
| 43101-12-8 | 10143-12-8 | 3/4×14 | 1/2 |
| 43101-12-10 | 10143-12-10 | 3/4×14 | 5/8 |
| 43101-12-12 | 10143-12-12 | 3/4×14 | 3/4 |
| 43101-12-16 | 10143-12-16 | 3/4×14 | 1 |
| 43101-16-12 | 10143-16-12 | 1×11-1/2 | 3/4 |
| 43101-16-16 | 10143-16-16 | 1×11-1/2 | 1 |
| 43101-20-20 | 10143-20-20 | 1-1/4×11-1/2 | 1-1/4 |
| 43101-24-24 | 10143-24-24 | 1-1/2×11-1/2 | 1-1/2 |
| 43101-32-32 | 10143-32-32 | 2×11-1/2 | 2 |
